Bitumen Emulsion

Do Not Mix Emulsion with Water or Any Other Liquid
Do Not Heat Emulsion

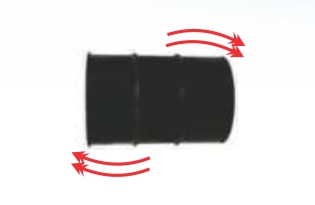

Roll The Emulsion Drums Before Use

Technical Requirements of Bitumen Emulsion (Cationic Type) IS:8887-2004

(Clouses 4.2 & 6.2)

Sr. No. Characteristic Grade of Emulsion
RS-1 RS-2 MS SS-1 SS-2
1 Residue on 600 micron IS Sieve, % mass Max. 0.05 0.05 0.05 0.05 0.05
2 Viscosity by Saybolt Furol Viscometer, Seconds at 25°C / 50°C 20 - 100
–		 100 - 300
–		 50 - 300
–		 20 - 100
–		 30 - 150
–
3 *1) Coagulation of emulsion at low temperatures. NIL NIL NIL NIL NIL
4 Storage stability after 24 hrs % Max. 2 1 1 2 2
5 Particle charge Positive Positive Positive Weak Positive Positive
6 Coating ability and water resistance
a) Coating, dry aggregate
b) Coating, after spraying
c) Coating, wet aggregate
d) Coating, after spraying 		- - Good
Fair
Fair
Fair		 - -
7 Stability to mixing with cement (% coagulation) Max. - - - 2 2
8 Miscibility with water (Coagulation) NIL NIL NIL - NIL
9 Test on Residue
a. Residue by Evaporation % Min.		 60 67 65 50 60
b. Penetration 25°C/100g/5 sec 80 - 150 80 - 150 60 - 150 60 - 350 60 - 120
c. Ductility 27°C/cm Min. 50 50 50 50 50
d. Solubility in trichloroethylene % Min. 98 98 98 98 98
10 Distillation percent, by volume at:
a. 190°C
b. 225°C
c. 260°C
d. 315°C 		- - - 20 - 55
30 - 75
40 - 90
60 - 100		 -
11 Water content, percent by mass, Max - - - 20 -

*1) The requirement shall be applicable only under situations where the ambient temperature is below 15°C

Application of Bitumen emulsion Grades in Road Development, Construction & Maintenance
  • Rapid Setting (RS-1): It is recommended for tack coat applications
  • Rapid Setting (RS-2): It is recommended for surface dressing, grouting
  • Medium Setting (MS): It is used for repair work, surface dressing, penetration macadam
  • Slow Setting (SS-1): It is used for prime coat, crack sealing and fog seal
  • Slow Setting (SS-2): It is used for slurry seal, road mixes and for prime coat applications
